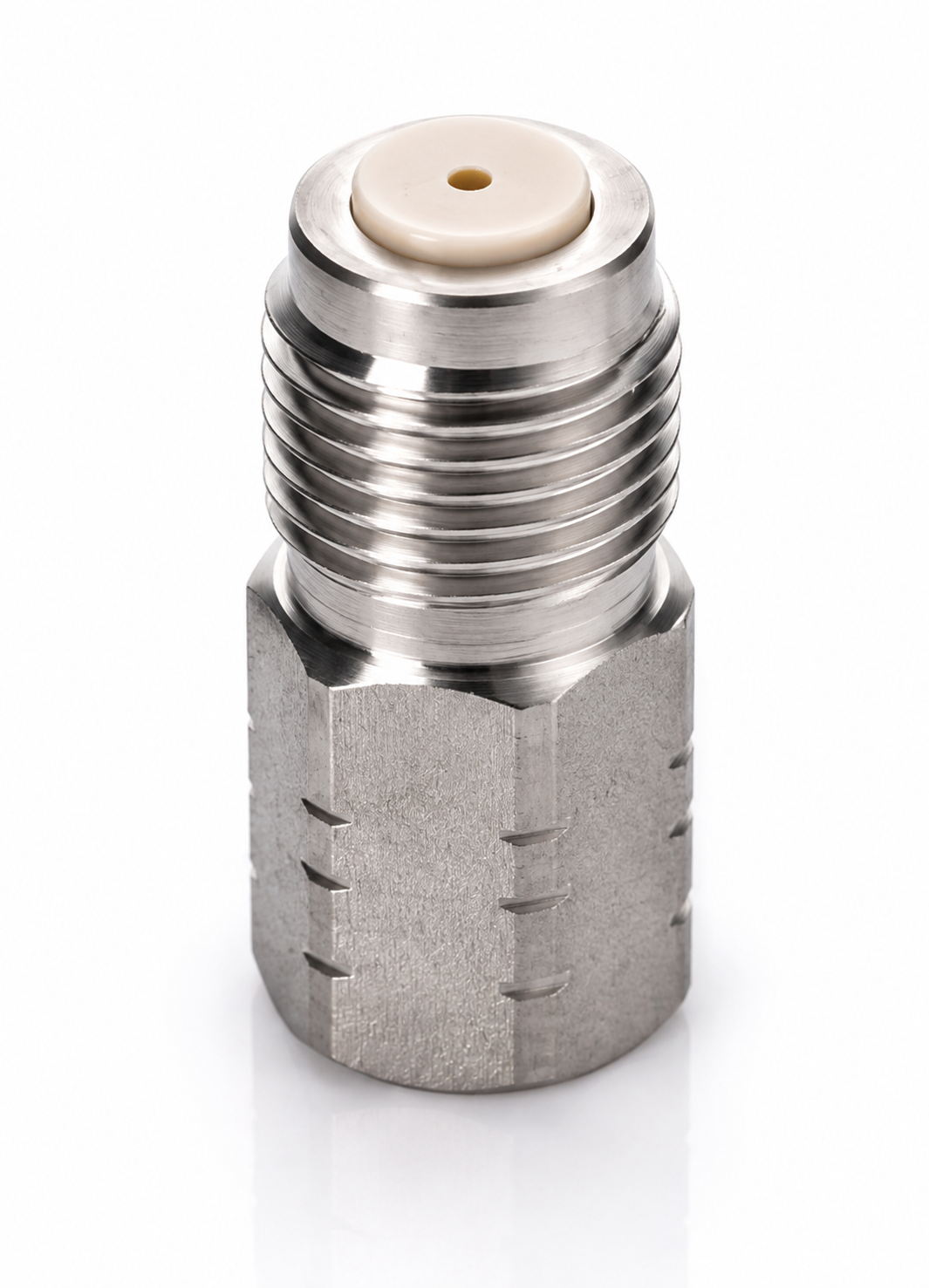

Shimadzu Inlet Check Valve
OEM-compatible Shimadzu Inlet Check Valve designed to maintain consistent mobile phase flow by preventing backflow in Shimadzu HPLC pump systems.
- Product Name
- Shimadzu Inlet Check Valve
- Part Number
- 228-48249-96
- OEM Part Number
- Shimadzu 228-48249-96
- Material
- Stainless Steel / Chemically Resistant Components
- Valve Type
- One-Way Inlet (Suction) Check Valve
- Compatible Systems
- LC-20AD/AB XR, LC-30ADSF, i-Series, LC-40D
The Shimadzu Inlet Check Valve (228-48249-96) is a precision-engineered one-way valve designed for Shimadzu HPLC pumps, including LC-20AD/AB XR, LC-30ADSF, i-Series, and LC-40D systems. During the pump suction stroke, the valve opens to draw fresh mobile phase into the pump head and closes during the delivery stroke to prevent backflow toward the solvent reservoir. A properly functioning inlet check valve ensures stable pressure, smooth flow delivery, and consistent chromatographic performance. Routine replacement during preventive maintenance helps eliminate pressure fluctuations, baseline noise, and flow inconsistencies caused by worn or contaminated valves. Key Features - OEM-compatible replacement part - Precision one-way valve design - Prevents mobile phase backflow - Maintains stable flow and pressure - High chemical resistance - Precision stainless steel construction - Easy installation - Recommended for annual preventive maintenance - Improves pump reliability - Long service life Applications - Shimadzu HPLC pump maintenance - Annual preventive maintenance - Pump priming - Flow stabilization - Pressure pulsation troubleshooting - Baseline noise reduction - Pharmaceutical laboratories - Environmental testing - Food & Beverage analysis - Research & Quality Control laboratories
