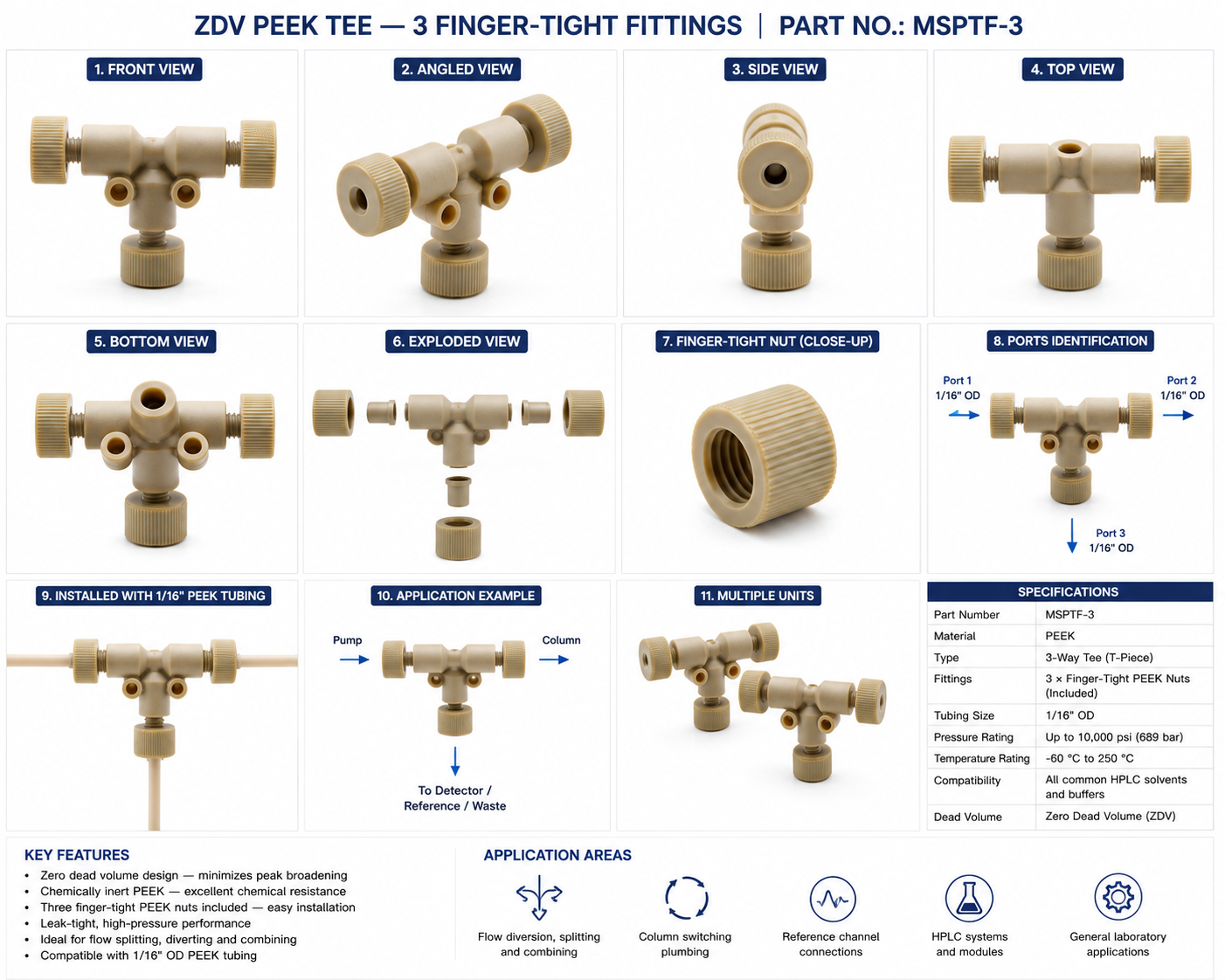

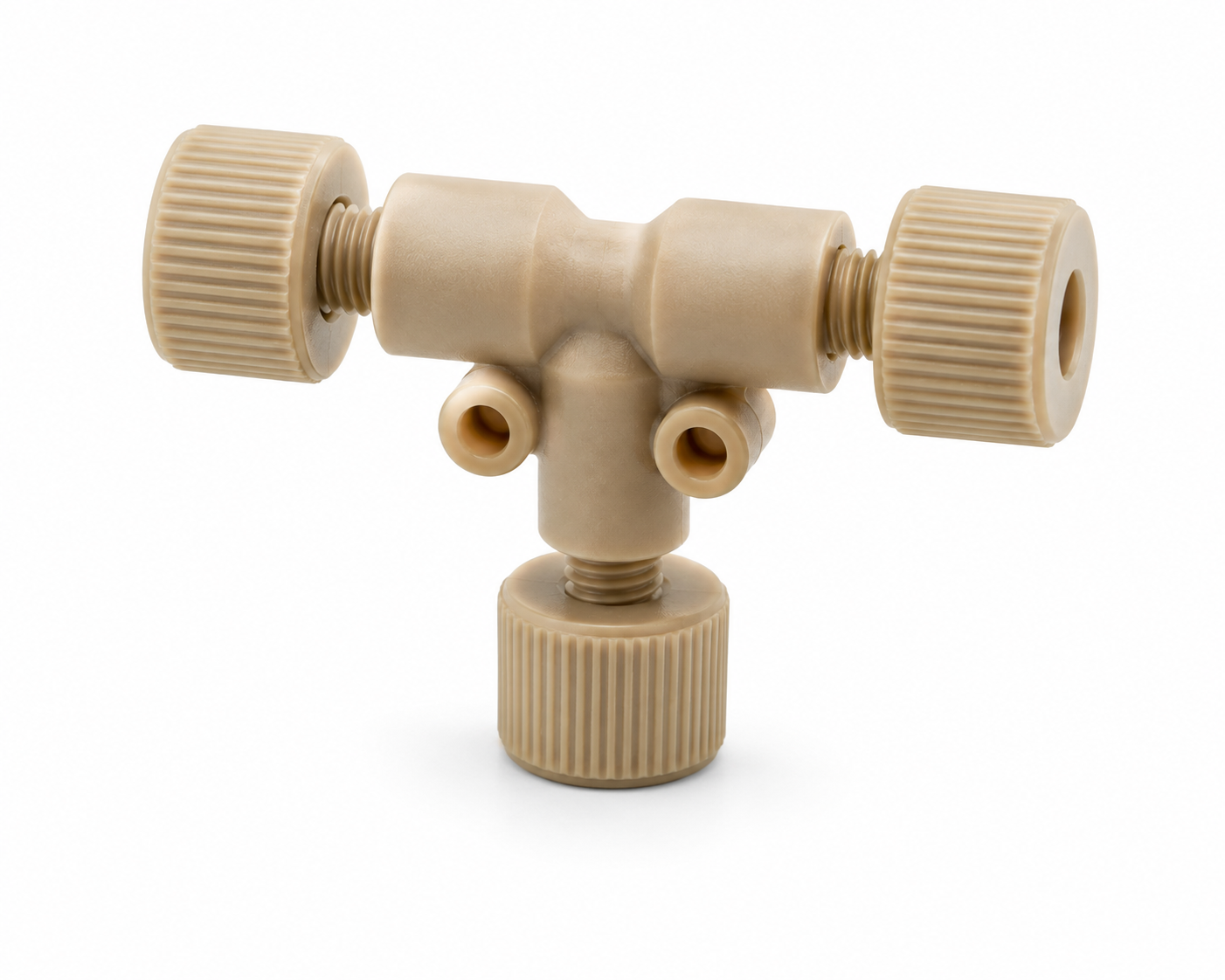

ZDV PEEK Tee – 3 Finger-Tight Fittings
A Zero Dead Volume (ZDV) PEEK Tee supplied with three finger-tight PEEK fittings for 1/16" OD tubing, designed for splitting, combining, or diverting HPLC flow paths while minimizing dead volume and maintaining chromatographic performance.
- Product Name
- ZDV PEEK Tee – 3 Finger-Tight Fittings
- Part Number
- MSPTF-3
- Material
- PEEK (Polyether Ether Ketone)
- Type
- Zero Dead Volume (ZDV) Tee
- Configuration
- 3-Way Tee (T-Piece)
- Ports
- 3
The MSPTF-3 ZDV PEEK Tee is a precision-engineered three-way connector manufactured from high-performance PEEK (Polyether Ether Ketone). Designed with a Zero Dead Volume (ZDV) internal geometry, it minimizes band broadening and preserves peak integrity by eliminating unnecessary internal volume at the junction. Supplied with three finger-tight PEEK nuts, the fitting provides quick, tool-free installation and is compatible with 1/16" OD tubing. The chemically inert PEEK body offers excellent resistance to common HPLC solvents, buffers, acids, and bases, making it ideal for bio-inert and metal-free flow paths. It is widely used in HPLC/UHPLC systems for flow splitting, column switching, reference channel connections, and detector plumbing. Key Features Zero Dead Volume (ZDV) design High-purity PEEK construction Three-way tee configuration Includes 3 finger-tight PEEK fittings Compatible with 1/16" OD tubing Tool-free installation Chemically inert and metal-free Excellent solvent and buffer resistance High-pressure compatible Minimizes peak broadening and dead volume Applications HPLC flow splitting Mobile phase flow diversion Flow combining Column switching systems Reference channel connections Differential RI/UV detector plumbing Bio-inert chromatography systems UHPLC system plumbing Research laboratories Pharmaceutical & QC laboratories
